FutureWEDGE® 3100 – All-Electric Active Vehicle Barrier

An all-electric active vehicle barrier available in single or dual buttress design, installed with a shallow foundation or simply bolted down on a suitable road surface.



Electric Active Vehicle Barrier
Electric Active Vehicle Barrier



The FutureWEDGE® 3100 is a versatile, environmentally-friendly, all-electric active vehicle barrier designed to meet a variety of perimeter security demands. Depending on your site’s crash rating requirements, the FutureWEDGE® 3100 comes in four practical versions, with the highest rating capable of stopping and immobilizing a 15,000 lb vehicle traveling up to 50 mph. The FutureWEDGE® 3100 vehicle barrier is a pollution-free solution utilizing an electric actuator designed to meet or exceed the operating speeds of hydraulic systems. There are no hydraulic hoses or polluting oil, which are common causes of barrier failure and costly maintenance. This patented, precision-built, new generation barrier reduces installation and maintenance costs while improving reliability at an overall lower life cycle cost.

The FutureWEDGE® 3100 electric active vehicle barrier features a motor and control design that provides greater utilization of the incoming power supply and improves efficiency. Any electric current can be used to power the barrier. High duty cycles for traffic control and lower maintenance costs are features of this barrier. It is standard with LED stop/go lights and can be ordered with a fully integrated gate arm assembly.



Applications

Airport and Ports
Corporate Offices
Data Centers
Diplomatic Missions
Mass Transit
Military Bases
National Landmarks
Stadiums and Arenas
Transport Infrastructure



Features that Make a Difference

All-Electric Operation
Battery Backup/UPS Available
Optional Integrated Gate Arm
PLC/VFD Controlled
Single or Dual Buttress
SkidKOTE Surface option
Super Shallow Foundation
Surface-Mount, Bolt-Down Model
Touchscreen Operation

Benefits to Owner/User

Environmentally Preferable
Extensive Model Range
High Traffic Capabilities
Integrated LED Safety Lights
Lower Installation Costs
Made for Integration
Master Control Capability
Safety Features



Product Models

Product # Barrier Depth Plate Height Road Width ASTM Crash Certification
SMD3115 0″ 31″ (785mm) 18′ (5.48m) ASTM PU40 5,070 lbs @ 40 mph (2,300 kg @ 68 kph)
SHS3108-4 9″ (229mm) 31″ (785mm) 11′ (3.35m) ASTM M30 (K4) 15,000 lbs @ 30 mph (6,800 kg @ 48 kph)
SHS3110-4 9″ (229mm) 31″ (785mm) 13′ (3.96m) ASTM M30 (K4) 15,000 lbs @ 30 mph (6,800 kg @ 48 kph)
SHS3108-8 9″ (229mm) 31″ (785mm) 11′ (3.35m) ASTM M40 (K8) 15,000 lbs @ 40 mph (6,800 kg @ 68 kph)
SHS3110-8 9″ (229mm) 31″ (785mm) 13′ (3.96m) ASTM M40 (K8) 15,000 lbs @ 40 mph (6,800 kg @ 68 kph)
SHS3112-8 9″ (229mm) 31″ (785mm) 15′ (4.57m) ASTM M40 (K8) 15,000 lbs @ 40 mph (6,800 kg @ 68 kph)
SHD3115-12 12″ (305mm) 31″ (785mm) 18′ (5.48m) ASTM M50 (K12) 15,000 lbs @ 50 mph (6,800 kg @ 80 kph)

All-Electric Operation

The FutureWEDGE® 3100 electric active vehicle barrier range is precision designed with no hydraulics or associated hazardous fluids. The all-electric operation eliminates breakdowns associated with traditional hydraulic systems and common wearing components such as hoses, cylinders and HPUs. The electro-mechanical drive features smooth, quiet and trouble-free operation.

Built for Integration

The FutureWEDGE® 3100 electric active vehicle barrier utilizes industry-leading PLC and VFD drives to allow for customized operation and communication with available touchscreen technology. The PLC also allows the barrier to be easily integrated with other perimeter security systems such as speed detection, access controls, traffic loops, automatic doors, CCTV, gates, and other intrusion devices.

LEED Environmentally Preferable

With the all-electric design, low emitting materials, qualified manufacturing points and environmental sustainability, the FutureWEDGE® 3100 can contribute towards as many as six LEED categories.

Multiple Features

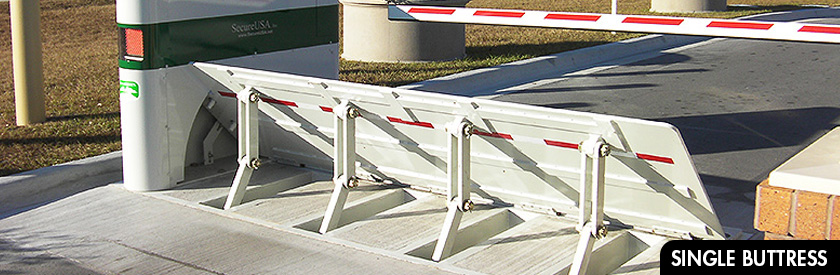

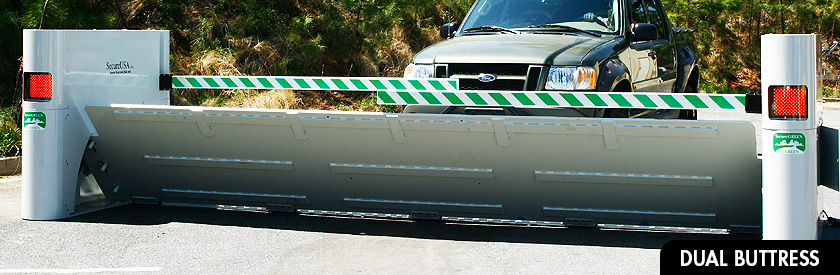

The FutureWEDGE® 3100 electric active vehicle barrier is available in a single or dual buttress design, with a bolt-down or shallow-foundation installation, depending on the crash-rating requirement. The 3100 is crash rated for all three ASTM M and DoS K levels. Typical foundation depth for an anchor frame installation is 8 – 12 inches (203 – 305 mm). Single entrances up to 16 feet (4.9 m) in width can be secured with the 3100 series. This model is standard with LED stop/go lights and can be supplied with a fully integrated gate arm assembly.
